METRIC THREADED PRODUCTS Out of Stock
item image

692309062001

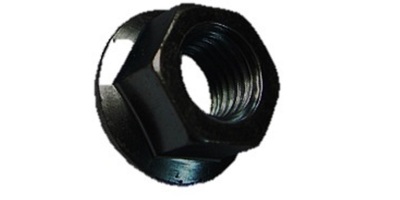

5/8-11 Hex Flange Nut Steel Grade 8 Plain ASME B18.2.2

  • Log In for Price
  • UM: C
  • Weight: 0.0880
  • Nut Type and Drive: Flange Non Serrated, External Hex
  • Specification: ASME B18.2.2
  • Thread Specifications: ASME B18.2.2 Coarse Right Hand Internal Thread Fit Class 2B
  • Material and Hardness: Alloy Steel in Accordance to SAE J995 for Grade 8, HRC 32 Maximum
  • Proof Load: In Accordance to SAE J995
  • Plating Finish: Plain
  • REACH and RoHS: REACH and RoHS Compliant
  • Country of Origin: Taiwan, China, Vietnam, or South Korea
  • Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter 5/8"
Thread Pitch 11
Head Wd. 15/16"
Height .687"
Flange Dia. 1.328"
