Product Details
692190S14035

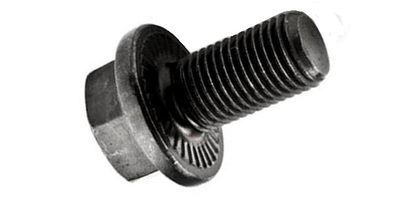

M14-2.0 x 35 Serrated Hex Flange Bolt, Class 12.9 Black
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
692190S14035
M14-2.0 x 35 Serrated Hex Flange Bolt, Class 12.9 Black
- Log In for Price
- UM: C
- FULL THREAD
- Hex Head Flange Bolt have a circular flange under the bolt head that acts like a washer to distribute the load. Locking Serrations grip the surface of the material to provide superior locking power against shock, vibration and other dynamic forces.
| Product Specifications | |
|---|---|
| Diameter | M14 |
| Thread Pitch | 2.0 |
| Length | 35mm |
| Head Wd. | 19mm |
| Head Ht. | 12.5mm |
| Flange Dia. | 28mm |
| Thread Len. | Full Thread |
