Product Details
1188Q104006

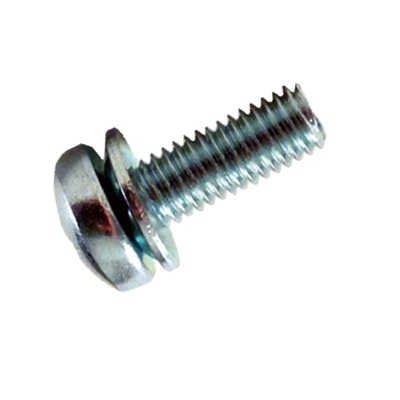

M 4-0.7 x 6 Philips Pan Head Machine Screw, Steel Zinc Plated JIS B 1188 Q
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
1188Q104006
M 4-0.7 x 6 Philips Pan Head Machine Screw, Steel Zinc Plated JIS B 1188 Q
- Log In for Price
- UM: C
- Weight: 0.0031
- JIS B 1188 Q Square Cone Lock Washer Pre-Assembled screws with one free spinning captive washer.
- Low cost and widely available.
- Increases productivity by eliminating hand assembly of individual components.
- Permanent assembly assures that the washer is not dropped, lost or forgotten.
- Ease of use with hand drivers and in automated production programs.
similar to Mr Metric M80630 Mountz
| Product Specifications | |
|---|---|
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 6mm |
| Head Wd. | 7.63mm |
| Head Ht. | 3.11mm |
| Drive Size | # 2 |
| Washer Dia. | 8.48mm |
| Full Thread | |
