Product Details
986959025028

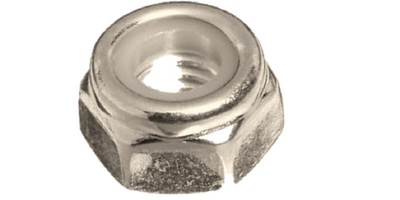

1/4-28 Nylon Insert Lock Nut (NTE), Thin Pattern, 18-8 Stainless Steel ASME B18.16.6
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
986959025028
1/4-28 Nylon Insert Lock Nut (NTE), Thin Pattern, 18-8 Stainless Steel ASME B18.16.6
- Log In for Price
- UM: C
- Weight: 0.0052
- Nut Type and Drive: Thin Nylon Insert (NTE), External Hex
- Specification: ASME B18.16.6
- Thread Specifications: ASME B18.16.6 Fine Right Hand Internal Thread Fit Class 2B
- Material and Hardness: Stainless Steel in Accordance to ASTM F594 for 18-8, HRB 95-HRC 35
- Proof Load: In Accordance to ASME B18.16.6
- Prevailing Torque in Accordance to ASME B18.16.6
- Nylon Insert Temperature: 250°F Max in Accordance to ASME B18.16.6
- Plating Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | 1/4" |
| Thread Pitch | 28 |
| Head Wd. | 7/16" |
| Height | .328" |
