Product Details
7982503030

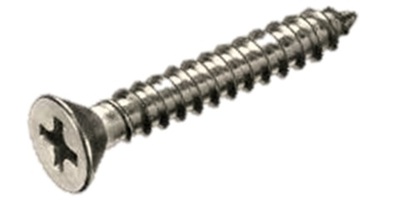

# 4 x 1 1/4 Philips Flat Self Tapping Screw, 18-8 Stainless Steel ASME B18.6.3
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
7982503030
# 4 x 1 1/4 Philips Flat Self Tapping Screw, 18-8 Stainless Steel ASME B18.6.3
- Log In for Price
- UM: C
- Weight: 0.0028
- Head Type and Drive: Countersunk Flat Head 100 Degree Taper, Philips Type H
- Specification: ASME B18.6.3
- Thread Specifications: Self Tapping in Accordance to ASME B18.6.3
- Material: 18-8 Stainless Steel in Accordance to ASTM F837 for Self Tapping Screw
- Plating Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, or South Korea
- Material Test Report Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | 4 |
| Thread Pitch | 24 |
| Length | 1 1/4" |
| Head Wd. | .212" |
| Head Ht. | .067" |
| Drive Size | # 1 |
| Thread Len. | Full Thread |
