Product Details
6334504001

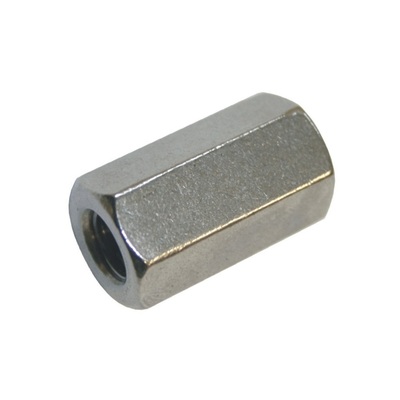

M 4-0.7 Hex Coupling Nut, Stainless Steel A2-50. DIN 6334
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
6334504001
M 4-0.7 Hex Coupling Nut, Stainless Steel A2-50. DIN 6334
- Log In for Price
- UM: C
- Weight: 0.0093
- Nut Type and Drive: Coupling, External Hex
- Specification: DIN 6334
- Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
- Material: Stainless Steel in Accordance to ISO 3506-2 for Property Class A2-50
- Proof Load: In Accordance to ISO 3506-2 for Property Class A2-50
- Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 12mm |
| Head Wd. | 8mm |
