Product Details

9858106001

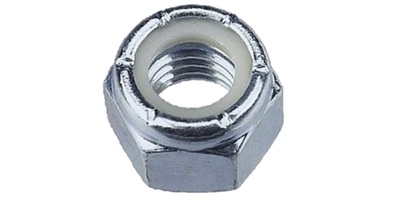

M 6-1.0 Nylon Insert Lock Nut, Steel, Class 8 Zinc. DIN 985 / ISO 10511

• Nut Type and Drive: Standard Nylon Insert, External Hex
• Specification: DIN 985, ISO 10511
• Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
• Material and Hardness: Carbon Steel in Accordance to ISO 898-2 for Property Class 8, HV 200-302
• Proof Load: In Accordance to ISO 898-2 for Property Class 8
• Prevailing Torque in Accordance to ISO 2320 for Property Class 8
• Nylon Insert Temperature Range -50°C to 120°C (-58°F to 248°F) in Accordance to ISO 2320
• Plating Finish: Clear Zinc Cr3 Trivalent Passivated
• REACH and RoHS: REACH and RoHS Complaint
• Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
• EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
