Product Details
9399908050-1

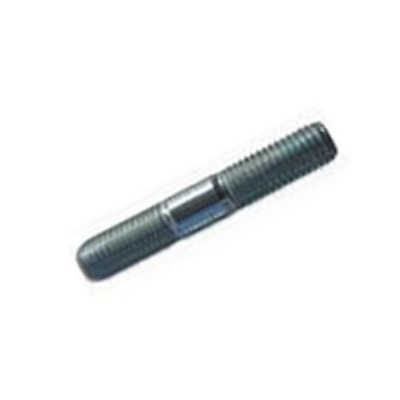

M 8-1.25 x 50 Double End Stud, Equal Thread Length, Steel Class 8.8 Zinc Plated. (VW Style)
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
9399908050-1
M 8-1.25 x 50 Double End Stud, Equal Thread Length, Steel Class 8.8 Zinc Plated. (VW Style)
- Log In for Price
- UM: C
- Weight: 0.0352
- Stud Type: Double Ended Equal Thread Length (Tap End)
- Specification: Special
- Thread Specifications: Metric ISO 965 Coarse Right Hand External Thread Fit 6g Tolerance
- Material and Hardness: Carbon Steel in Accordance to ISO 898-1 for Property Class 8.8 Fasteners, HRC 22-32
- Property Class 8.8 in Accordance to ISO 898-1, Tensile Strength 800 MPa N/mm² (116,000 PSI)
- Plating Finish: Clear Zinc Cr3 Trivalent Passivated
- REACH and RoHS: REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Nominal Len. | 40mm |
| Overall Len. | 50mm |
| Thread Len. 1 | 16mm |
| Thread Len. 2 | 16mm |
