Product Details
9399908038

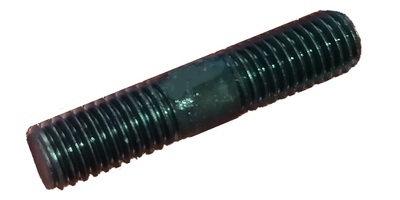

M 8-1.25 x 38 Double End Stud, Equal Thread Length, Steel Class 8.8 Plain. (VW Volkswagen Style)
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
9399908038
M 8-1.25 x 38 Double End Stud, Equal Thread Length, Steel Class 8.8 Plain. (VW Volkswagen Style)
- Log In for Price
- UM: C
- Weight: 0.0267
- VW Volkswagen N14-443-4 Double End Studs have the threads on each end usually to house a nut on the long side and be driven into the device on the short side. Both ends have chamfered points.
similar to VW Volkswagen N 014 443 4, N14-443-4, N144434, Nissan 01151-01004 / 08213-82810 / 14064-01M00 /14064-4L700 / 14064-58Y00 / 14064-E3000 / 14064-E3001 / 14064-N4200, Dorman 29203 / 675-339 / 675-339.1 / 03109, S8X38EBLK / CRX 4536
| Product Specifications | |
|---|---|
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Nominal Len. | 22mm |
| Overall Len. | 38mm |
| Thread Len. 1 | 16mm |
| Thread Len. 2 | 16mm |
