Product Details
6999105020

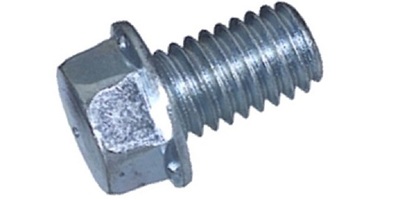

M 5-0.8 x 20 Hex Flange Bolt Small Head, Class 10.9 Zinc
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
6999105020
M 5-0.8 x 20 Hex Flange Bolt Small Head, Class 10.9 Zinc
- Log In for Price
- UM: C
- Weight: 0.0093
- Head Type and Drive: Hex Flange Non Serrated, External Hex
- Specification: Special
- Thread Specifications: Metric ISO 965 Coarse Right Hand External Thread Fit 6g Tolerance
- Material and Hardness: Alloy Steel in Accordance to ISO 898-1 for Property Class 10.9 Fasteners, HRC 32-39
- Property Class 10.9 in Accordance to ISO 898-1, Tensile Strength 1040 MPa N/mm² (150,000 PSI)
- Plating Finish: Clear Zinc Cr3 Trivalent Passivated and Bake
- REACH and RoHS: REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Length | 20mm |
| Head Wd. | 7mm |
| Head Ht. | 5mm |
| Flange Dia. | 10mm |
| Thread Len. | Full Thread |
