Product Details
6335206042

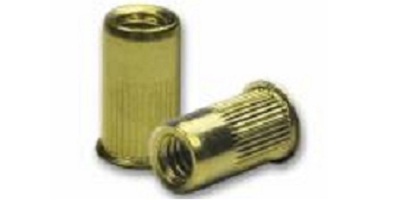

M 6-1.0 Knurled Rivet Nut w/Small Flange, 0.7-4.2mm Grip Range Steel Yellow Zinc
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
6335206042
M 6-1.0 Knurled Rivet Nut w/Small Flange, 0.7-4.2mm Grip Range Steel Yellow Zinc
- Log In for Price
- UM: C
- Weight: 0.0080
- Nut Type: Knurled Rivet Nut, Small Flange
- Specification: Special
- Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
- Material: Carbon Steel
- Plating Finish: Yellow Zinc Cr6 Hexavalent Passivated
- REACH and RoHS: Not REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Height | 14.73mm |
| Grip Range | 0.7mm~4.2mm |
| Flange Dia. | 11.56mm |
| Body Dia. | 9.9mm |
| Drill Size | 10mm |
