METRIC THREADED PRODUCTS In Stock
item image

6335205033-1

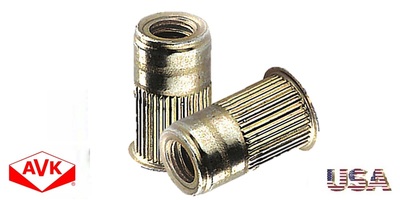

M 5-0.8 Knurled Rivet Nut w/Small Flange, Steel Yellow Zinc

  • Log In for Price
  • UM: C
  • Weight: 0.0047
  • Nut Type: Knurled Rivet Nut, Small Flange
  • Specification: Special
  • Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
  • Material: Carbon Steel
  • Plating Finish: Yellow Zinc Cr6 Hexavalent Passivated
  • REACH and RoHS: Not REACH and RoHS Complaint
  • Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
  • EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter M 5
Thread Pitch 0.8
Height 12.07mm
Grip Range .5mm~3.3mm
Flange Dia. 8.64mm
Body Dia. 7.6mm
Drill Size 7.6mm
