Product Details
1190408125

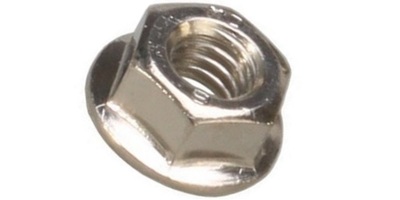

M 8-1.25 DIN Hex Flange Nut, Small Hex, Non Serrated, Class 10 Nickel. JIS B 1190
Locations | Availability |
---|---|
METRIC THREADED PRODUCTS | In Stock |
1190408125
M 8-1.25 DIN Hex Flange Nut, Small Hex, Non Serrated, Class 10 Nickel. JIS B 1190
- Log In for Price
- UM: C
- Weight: 0.0098
- NON SERRATED JIS B 1190 Japanese Industry Standard fasteners have a smaller hex dimension than their more common DIN counterparts and fit those tight spots where the hex of a DIN fastener is too large. JIS. fasteners are often used on import cars. These types of nuts are designed to remove the deficiencies commonly associated with the use of washers and commonly used for high strength automotive applications.
Product Specifications | |
---|---|
Diameter | M 8 |
Thread Pitch | 1.25 |
Head Wd. | 12mm |
Height | 8mm |
Flange Dia. | 17.5mm |
