Product Details

  • Log In for Price
  • Minimum Order Quantity: 50
  • Available Only in Quantities of: 0
  • Case Quantity: 500
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS In Stock
item image

1181110125

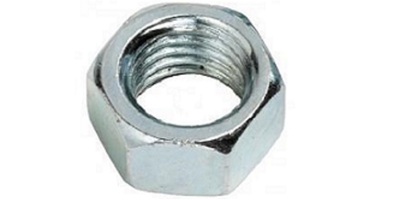

M10-1.25 Small Hex Nut, Class 8 Zinc JIS B 1181

  • Log In for Price
  • UM: C
  • Weight: 0.0128
  • Nut Type and Drive: Standard, External (Small) Hex
  • Specification: JIS B 1181
  • Thread Specifications: Metric ISO 965 Fine Right Hand Internal Thread Fit 6H Tolerance
  • Material and Hardness: Carbon Steel in Accordance to JIS B 1052 for Property Class 8, HV 250-353
  • Proof Load: In Accordance to JIS B 1052 for Property Class 8
  • Plating Finish: Clear Zinc Cr3 Trivalent Passivated
  • REACH and RoHS: REACH and RoHS Complaint
  • Country of Origin: Taiwan, China, Japan, Vietnam, or South Korea
  • EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter M10
Thread Pitch 1.25
Head Wd. 14mm
Height 8mm
