Product Details
1073301704-2

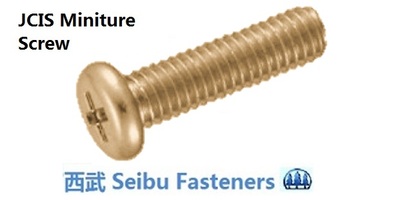

M 1.7-0.35 x 4 Phil Pan Head Machine Screw, Precision Hardened Steel Yellow Zinc JCIS 1070 Type 3
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
1073301704-2
M 1.7-0.35 x 4 Phil Pan Head Machine Screw, Precision Hardened Steel Yellow Zinc JCIS 1070 Type 3
- Log In for Price
- UM: C
- Weight: 0.0002
- Head Type and Drive: Low Profile Pan Head, Phillips Type H
- Specification: JCIS 10-70 Type 3
- Thread Specifications: Metric ISO 965 Coarse Right Hand External Thread Fit 6g Tolerance
- Material and Hardness: Precision Hardened Steel in Accordance to JCIS 10-70 HV 500-600
- Plating Finish: Yellow Zinc Cr6 Hexavalent Passivated
- REACH and RoHS: Not REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Japan, Vietnam, or South Korea
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 1.7 |
| Thread Pitch | 0.35 |
| Length | 4mm |
| Head Wd. | 3mm |
| Head Ht. | .9mm |
| Drive Size | # 0 |
| Thread Len. | Full Thread |
