Product Details
9108110125

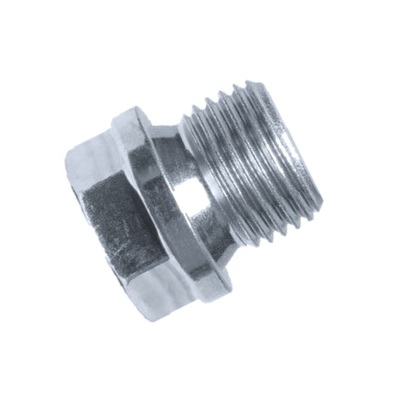

M10-1.25 Hex Head Pipe Plug w/Flange, Steel Zinc DIN 910
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
9108110125
M10-1.25 Hex Head Pipe Plug w/Flange, Steel Zinc DIN 910
- Log In for Price
- UM: C
- Plug Type: Flange Hex Pipe Plug Straight Thread
- Specification: DIN 910
- Thread Specifications Metric ISO 965 Fine Right Hand External Thread Fit 6g Tolerance
- Material and Hardness: Carbon Steel in Accordance to ISO 898-1 for Property Class 5.8 Fasteners, HRB 82-95
- Property Class 5.8 in Accordance to ISO 898-1
- Plating Finish: Clear Zinc Cr3 Trivalent Passivated
- REACH and RoHS: REACH and RoHS Complaint
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M10 |
| Thread Pitch | 1.25 |
| Length | 8mm |
| Head Wd. | 10mm |
| Head Wd. | 14mm |
| Head Ht. | 9mm |
