Product Details

  • Log In for Price
  • Available Only in Quantities of: 0
  • Case Quantity: 1,000
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS Out of Stock
item image

7985604006

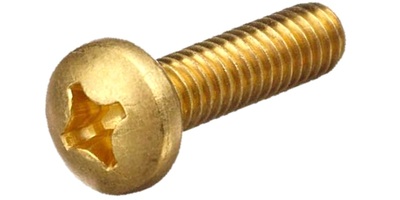

M 4-0.7 x 6 Philips Pan Machine Screw, Brass. DIN 7985 / ISO 7045

  • Log In for Price
  • UM: C
  • Weight: 0.0033
  • Head Type and Drive: Pan Head, Phillips Type H
  • Specification: DIN 7985, ISO 7045
  • Thread Specifications: Metric ISO 965 Coarse Right Hand External Thread Fit 6g Tolerance
  • Material: Brass in Accordance to EN 28839
  • Brass in Accordance to EN 28839, Tensile Strength 440 MPa N/mm² (63,800 PSI)
  • Finish: Brass Passivated
  • REACH and RoHS: REACH and RoHS Complaint
  • Country of Origin: Taiwan, China, Vietnam, Malaysia, or EU Countries
  • EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
Product Specifications
Diameter M 4
Thread Pitch 0.7
Length 6mm
Head Wd. 8mm
Head Ht. 3.1mm
Drive Size # 2
Thread Len. Full Thread
