6999608045

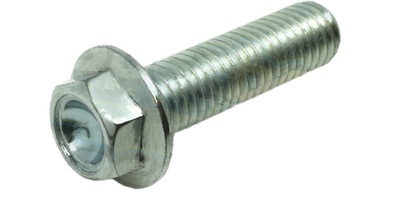

M 8-1.25 x 45 Hex Flange Bolt Small Head, Class 8.8 Zinc.

  • Log In for Price
  • UM: C
  • Weight: 0.0397
  • Dished Head
  • New Honda & KTM Design
  • Motorcycle Spec
  • Hex Head Flange Bolt have a circular flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.

similar to Yamaha 90105, 95022-08045-00, Kawasaki 132BA0845 / 132G0845, Suzuki 01547-0845B, MFBZM08X45, S76 8x45

Product Specifications
Diameter M 8
Thread Pitch 1.25
Length 45mm
Head Wd. 10mm
Head Ht. 5.63mm
Flange Dia. 14.5mm
Thread Len. Full Thread
Body Dia. 7.04mm
