Product Details
6797610001-1

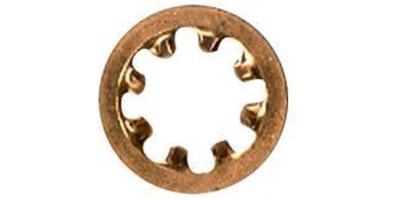

M10 Internal Tooth Lock Washer, Bronze. DIN 6797 J / JIS B 1255 / JIS B 1251
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
6797610001-1
M10 Internal Tooth Lock Washer, Bronze. DIN 6797 J / JIS B 1255 / JIS B 1251
- Log In for Price
- UM: C
- Weight: 0.0020
- DIN 6797 J
- JIS B 1255
- UNI 8841
- CSN 021744
- The internal tooth lock washer is designed to prevent a nut or bolt head from loosening with the strut action set up by the teeth. The teeth, also, absorb shock and vibration. The teeth abrade the grounding surface in electrical grounding applications to improve the electrical connection.
| Product Specifications | |
|---|---|
| Screw Dia. | M10 |
| Inside Dia. | 10.5mm |
| Outside Dia. | 18mm |
| Thickness | .9mm |
