6797112001

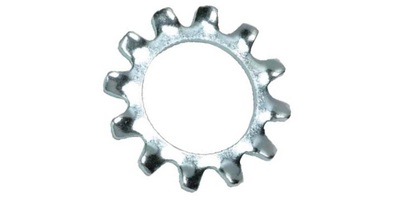

M12 External Tooth Lock Washer, Steel Zinc. DIN 6797 A / JIS B 1255 / JIS B 1255

  • Log In for Price
  • UM: C
  • Weight: 0.0024
  • DIN 6797 A
  • JIS B 1255
  • UNI 8841
  • CSN 021744
  • An external tooth lock washer has teeth that extend radially outward to bite into the bearing surface. Like internal tooth lock washers, they are designed to prevent a nut or bolt head from loosening with the strut action of the teeth. They work best with larger screw or bolt heads.
Product Specifications
Screw Dia. M12
Inside Dia. 12.5mm
Outside Dia. 20.5mm
Thickness 1.0mm
