Product Details
6538004010

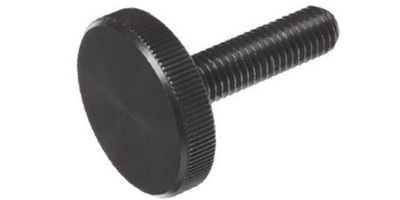

M 4-0.70 x 10 Knurled Thumb Screw, Steel Plain. DIN 653
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
6538004010
M 4-0.70 x 10 Knurled Thumb Screw, Steel Plain. DIN 653
- Log In for Price
- UM: C
- Weight: 0.0113
- Head Type: Knurled Thumb
- Specification: DIN 653
- Thread Specifications: Metric ISO 965 Coarse Right Hand External Thread Fit 6g Tolerance
- Material and Hardness: Low Carbon Steel in Accordance to DIN 653
- Plating Finish: Thermal Black Oxide
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 10mm |
| Head Wd. | 16mm |
| Head Ht. | 3.5mm |
| Shoulder Dia. | 4mm |
| Shoulder Len. | 3mm |
| Thread Len. | Full Thread |
