METRIC THREADED PRODUCTS In Stock
item image

5809018001

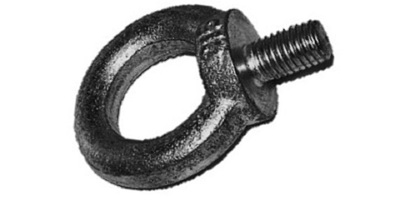

M18-2.5 Lifting Eye Bolt, C15 Steel Plain. DIN 580 / ISO 3266 / JIS B 1168

  • Log In for Price
  • UM: C
  • Weight: 0.8044
  • DIN 580
  • ISO 3266
  • JIS B 1168
  • Eye Bolts are used to attach a securing eye to a structure, so that slings or other hardware can be attached for lifting. Eye Bolts are load rated and made from forged steel that has been quenched and tempered.
Product Specifications
Diameter M18
Thread Pitch 2.5
Inside Dia. 40mm
Outside Dia. 72mm
Base Dia. 40mm
Thread Len. 30mm
Vertical Cap. 930 kgs
45 Deg Dual Cap 650 kgs
