Product Details

  • Log In for Price
  • Available Only in Quantities of: 0
  • Case Quantity: 25
  • Log in to see if custom discounts apply
Locations Availability
METRIC THREADED PRODUCTS In Stock
item image

5809016001

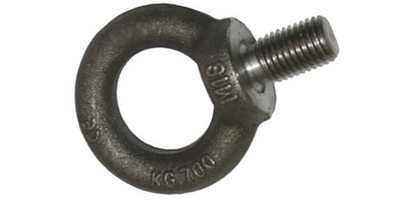

M16-2.0 Lifting Eye Bolt, C15 Steel Plain. DIN 580 / ISO 3266

  • Log In for Price
  • UM: C
  • Weight: 0.6174
  • DIN 580 Eye Bolts are used to attach a securing eye to a structure, so that slings or other hardware can be attached for lifting. Eye Bolts are load rated and made from forged steel that has been quenched and tempered.

Similar to ISO 3266, JIS B 1168

Product Specifications
Diameter M16
Thread Pitch 2.0
Inside Dia. 35mm
Outside Dia. 63mm
Base Dia. 35mm
Thread Len. 27mm
Vertical Cap. 700 kgs
45 Deg Dual Cap 500 kgs
