Product Details
4669503001

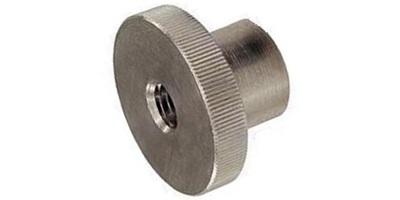

M 3-0.5 Knurled Thumb Nut w/Collar, Stainless Steel A1-50,. DIN 466
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
4669503001
M 3-0.5 Knurled Thumb Nut w/Collar, Stainless Steel A1-50,. DIN 466
- Log In for Price
- UM: C
- Nut Type: Knurled with Collar
- Specification: DIN 466
- Thread Specifications: Metric ISO 965 Coarse Right Hand Internal Thread Fit 6H Tolerance
- Material: Stainless Steel in Accordance to ISO 3506-2 for Property Class A1-50
- Proof Load: In Accordance to ISO 3506-2 for Property Class A1-50
- Plating Finish: Stainless Steel Passivated
- REACH and RoHS: REACH and RoHS Compliant
- Country of Origin: Taiwan, China, Vietnam, South Korea, or EU Countries
- EN10204 3.1 Certification Available (Certification fees may apply, certificate must be requested at time of ordering)
| Product Specifications | |
|---|---|
| Diameter | M 3 |
| Thread Pitch | 0.5 |
| Head Wd. | 12mm |
| Height | 2.5mm |
| Shoulder Dia. | 6mm |
| Shoulder Len. | 5mm |
