Product Details
1189308025

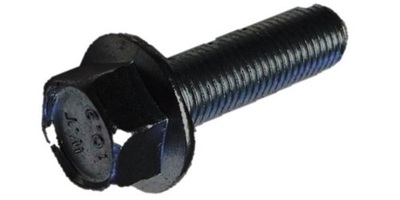

M 8-1.25 x 25 Hex Head Flange Bolt Small Head, Class 10.9 Black Zinc. JIS B 1189
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
1189308025
M 8-1.25 x 25 Hex Head Flange Bolt Small Head, Class 10.9 Black Zinc. JIS B 1189
- Log In for Price
- UM: C
- Weight: 0.0362
- FULL THREAD JIS B 1189 Type 2 Small Hex Head Flange Bolt. If you are after that original look or just a small head, come no further. Typically used on Nissan, Honda, Toyota and Subaru vehicles as well as Suzuki, Yamaha and Kawasaki motorcycles. Hex Head Flange Bolt have a circular flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
similar to Kawasaki 130S0825, Polaris 0452123, 96000-08025-K, BF8X25BLK
| Product Specifications | |
|---|---|
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 25mm |
| Head Wd. | 12mm |
| Head Ht. | 8mm |
| Flange Dia. | 17.5mm |
| Thread Len. | Full Thread |
