Product Details
1189206030

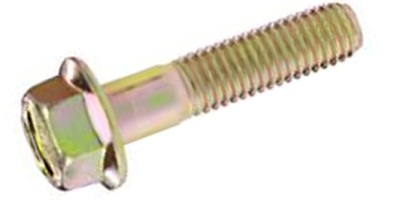

M 6-1.0 x 30 Hex Head Flange Bolt Small Head, Type 2, Class 10.9 Zinc Yellow. JIS B 1189
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
1189206030
M 6-1.0 x 30 Hex Head Flange Bolt Small Head, Type 2, Class 10.9 Zinc Yellow. JIS B 1189
- Log In for Price
- UM: C
- Weight: 0.0197
- PARTIAL THREAD JIS B 1189 Type 2 Small Hex Head Flange Bolt. If you are after that original look or just a small head, come no further. Typically used on Nissan, Honda, Toyota and Subaru vehicles as well as Suzuki, Yamaha and Kawasaki motorcycles. Hex Head Flange Bolt have a circular flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
similar to Suzuki 01550-06303, 01550-0630A, Dorman 459-230, BF6X30YLW, FBYZM06X030
| Product Specifications | |
|---|---|
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 30mm |
| Head Wd. | 10mm |
| Head Ht. | 6mm |
| Flange Dia. | 14mm |
| Thread Len. | 18mm |
