Product Details
1188B204010-8

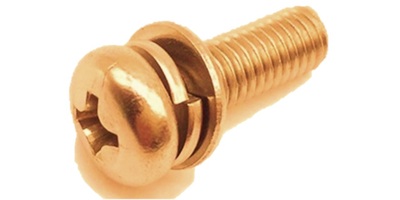

M 4-0.7 x 10 Philips Pan SEMS Screw, Steel Zinc Yellow CR3 JIS B 1188 B
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
1188B204010-8
M 4-0.7 x 10 Philips Pan SEMS Screw, Steel Zinc Yellow CR3 JIS B 1188 B
- Log In for Price
- UM: C
- Weight: 0.0036
- JIS B 1188 B Split Lock Washer & Flat Washer Pre-Assembled screws with two free spinning captive washers.
- Low cost and widely available.
- Increases productivity by eliminating hand assembly of individual components.
- Permanent assembly assures that the washer is not dropped, lost or forgotten.
- Ease of use with hand drivers and in automated production programs.
similar to Honda 93892-0401008, Seibu Fasteners 782, Mr Metric M30221 Mountz, JISB1188-BGM04X010-8
| Product Specifications | |
|---|---|
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 10mm |
| Head Wd. | 7.0mm |
| Head Ht. | 2.75mm |
| Drive Size | # 2 |
| Washer Dia. | 8mm |
| Thread Len. | Full Thread |
