Product Details
9159504008

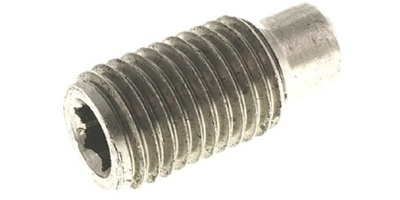

M 4-0.7 x 8 Socket Set Screw, Dog Point, Stainless Steel A2 70. DIN 915 / ISO 4028
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | Out of Stock |
9159504008
M 4-0.7 x 8 Socket Set Screw, Dog Point, Stainless Steel A2 70. DIN 915 / ISO 4028
- Log In for Price
- UM: C
- Weight: 0.0009
- DIN 915
- ISO 4028
- CSN 021189
- JIS B 117
- Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that offers excellent grip while also resisting deforming of the shaft surface. Dog Point Screw is an industrial fastener that can hold more than one object in place, securely. They are often used to guide parts into holes that have already been drilled and incorporate a flat tip.
| Product Specifications | |
|---|---|
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 8mm |
| Drive Size | 2mm |
| Dog Pt. Dia. | 2.5mm |
| Dog Pt. Len. | 2.25mm |
| Thread Len. | Full Thread |
