Product Details
9139008012

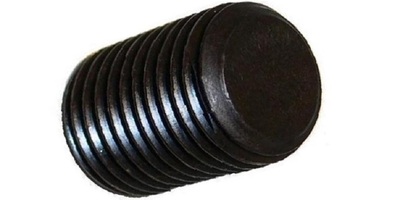

M 8-1.25 x 12 Socket Set Screw, Flat Point, Alloy 45H Thermal Black. DIN 913 / ISO 4026
| Locations | Availability |
|---|---|
| METRIC THREADED PRODUCTS | In Stock |
9139008012
M 8-1.25 x 12 Socket Set Screw, Flat Point, Alloy 45H Thermal Black. DIN 913 / ISO 4026
- Log In for Price
- UM: C
- Weight: 0.0069
- DIN 913
- ISO 4026
- CSN 021187
- UNI 5923
- JIS B 117
- Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that offers excellent grip while also resisting deforming of the shaft surface. A flat point screw provides more contact with the shaft.
| Product Specifications | |
|---|---|
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 12mm |
| Drive Size | 4mm |
| Thread Len. | Full Thread |
