Product Details
7379010016

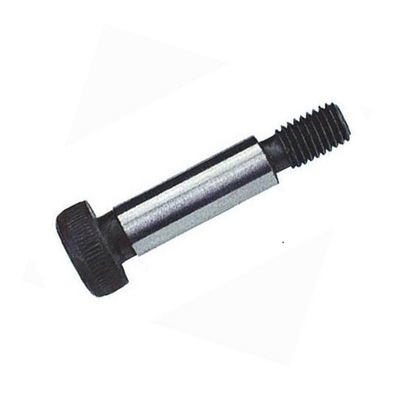

M10 x 16 Socket Shoulder Bolt, Alloy Zinc Plated.
Locations | Availability |
---|---|
METRIC THREADED PRODUCTS | In Stock |
7379010016
M10 x 16 Socket Shoulder Bolt, Alloy Zinc Plated.
- Log In for Price
- UM: C
- Weight: 0.0520
- ISO 7379
- JIS B 1175
- CSN 021113
- Socket Shoulder Screws or Shoulder Bolts are fasteners that have an unthreaded portion of their shank that functions as a bearing surface or spacer. Nominal Shoulder Bolt measurements are measured from under the head to the end of the shoulder. Thread sizes are always smaller than the diameter of the shoulder.
Product Specifications | |
---|---|
Shoulder Dia. | M10 |
Thread Size | M 8-1.25 x 13mm |
Shoulder Len. | 16mm |
Head Wd. | 16mm |
Head Ht. | 7mm |
Drive Size | 5mm |
